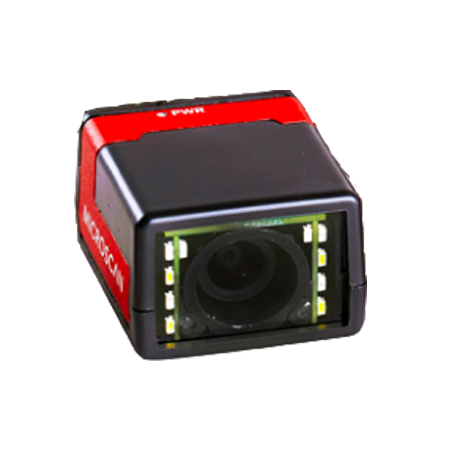

								Microscan邁思肯ID–20 OEM 讀碼器




























            1. 產品說明
              2.

            2. 主要特征
              3.
            3. 技術指標
              4.
            4. 適用行業
              5.
            5. 資源下載
              6.

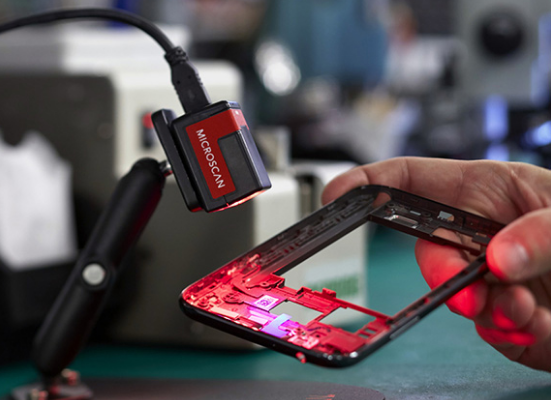

              ID-20是世界上最小的全功能條碼掃描器，完全集成了條碼成像儀，是一種微型、簡單
且合理的解決方案，適用于嵌入式設計或在制品追蹤，為原始設備制造商和工程師提
供了一組完美的價值和性能選項。
作為同類產品中僅有的掃描器，ID-20是一種單電纜解決方案，它采用單根USB線進
行2種通信(USB2.0高速和通過USB連接以太網）并且供電，實現即插即用式集成。微
型已演變為超微型，并且極其易用。
              Microscan邁思肯ID–20 OEM 讀碼器可解如下碼
              標準型: 高對比度1D
              增強型：高對比度1D/2D
              X-Mode: 所有1D/2D,
包括低對比度、損壞或打印
質量差的條碼






              Microscan邁思肯ID–20 OEM 讀碼器特點
              極其緊湊 (19.5 mm x
28.7mm x 33.9 mm)
              高速USB 2.0接口,通過
USB連接以太網
              X-Mode 高級解碼算法
              集成了目標和讀取/通過指
示燈
              可編程的紅色或白色LED
照明燈
              基于瀏覽器的設置界面
WebLink





              Microscan邁思肯ID–20 OEM 讀碼器參數

              		ID-20ID-30ID-40
              解碼Standard (High-Contrast 1D)
              Plus (High-Contrast 1D/2D)
              X-Mode (Poor or Damaged)              		Standard (High-Contrast 1D)
              Plus (High-Contrast 1D/2D)
              X-Mode (Poor or Damaged + DPM)              		Standard (High-Contrast 1D)
              Plus (High-Contrast 1D/2D)
              X-Mode (Poor or Damaged + DPM)
              速度Standard (up to 10 FPS)Standard (up to 10 FPS) or High-Speed (max. sensor FPS)Standard (up to 10 FPS) or High-Speed (max. sensor FPS)
              精度Standard- or High-DensityStandard- or High-DensityStandard- or High-Density
              傳感器 (CMOS)WVGA 0.34MP (752x480)
              Global Shutter, up to 60 FPS
              SXGA 1.2MP (1280x960)
              Global Shutter, up to 42 FPS
              QSXGA 5.0MP (2592x1944)
              Rolling Shutter, up to 5 FPS              		WVGA 0.34MP (752x480)
              Global Shutter, up to 60 FPS
              SXGA 1.2MP (1280x960)
              Global Shutter, up to 42 FPS
              QSXGA 5.0MP (2592x1944)
              Rolling Shutter, up to 5 FPS              		WVGA 0.34MP (752x480)
              Global Shutter, up to 60 FPS
              SXGA 1.2MP (1280x960)
              Global Shutter, up to 42 FPS
              QSXGA 5.0MP (2592x1944)
              Rolling Shutter, up to 5 FPS
              曝光50 - 100,000
              Default: 2,500 μs              		50 - 100,000
              Default: 2,500 μs              		50 - 100,000
              Default: 2,500 μs
              顏色QSXGA onlyQSXGA onlyQSXGA only
              焦距Fixed (50-300 mm)Fixed (50-300 mm)
              Liquid Lens Autofocus              		Fixed (50-300 mm)
              Liquid Lens Autofocus
              通信方式USB 2.0 High Speed, Ethernet over USB / HIDRS-232, USB 2.0 High Speed, Ethernet over USB / HIDRS-232, Ethernet TCP/IP, EtherNet/IP?, PROFINET?,
              Power over Ethernet (PoE)
              連接器Micro-B USBHigh-Density 15-Pin D-SubM12 12-Pin (Power), M12 8-Pin (Ethernet)
              線纜N/A0.91 mN/A
              照明Inner LEDs: 4 White/4 Red
              Outer LEDs: N/A              		Inner LEDs: 4 White/4 Red
              Outer LEDs: 8 High-Intensity White or Red (Optional)              		Outer LEDs: 8 High-Intensity
              White or Red (Optional)
              數字 I/ON/A3 in/3 out
              Trigger Input: 5-28V rated (0.16mA @ 5VDC); New Master: 5 to 28V rated (0.16mA @ 5VDC); Default: 3.3V rated (0mA @ 3.3V)
              Outputs (1, 2, 3): 5V TTL-compa tible, can sink 10mA and source 10mA              		3 in/3 out, Optoisolated
              Trigger Input; New Master:
              Bi-directional, opto-isolated, 4.5-28V rated (10mA @ 28VDC)
              Outputs (1, 2, 3): Bi-directional, opto-isolated, 1-28V rated (ICE < 100mA at 24VDC, current limited by user)
              電氣參數5 VDC ± 5 %,
              350 mA at 5 VDC (typ.)              		5 VDC ± 5 %,
              600 mA at 5 VDC (typ.)              		4.75-30 VDC, 200 mV p-p max
              ripple, 150 mA at 24 VDC (typ.)
              尺寸24 mm x 34 mm x 39 mm25 mm x 45 mm x 38 mm25 mm x 45 mm x 45 mm
              重量26 g46 g (包括線纜)68 g
              外殼IP40,塑料IP54, 鋁IP65, 鋁
              指示Target Pattern,
              Good Read Green Flash              		Target Pattern,
              Good Read Green Flash,
              Performance LEDs              		Target Pattern,
              Good Read Green Flash,
              Performance LEDs
              光源
              Type: High output LEDs Output
              Wavelength: 625 nm (Inner Red) nominal / 617 nm (Outer Red) nominal
              Operating Life: 50,000 hours @ 25° C

              環境
              Operating Temperature: 0° to 40° C (32° to 104° F)
              Storage Temperature: -50° to 75° C (-58° to 167° F)
              Humidity: 5% to 95% (non-condensing)
              排放
              EN 55022:2010 Class A Limits






              Microscan邁思肯ID–20 OEM 讀碼器應用案例

              生命科學和臨床儀器
              實驗室自動化和配藥
              電子裝配和測試
              自動服務和售票
